IR Remote Control Replacement
TM4C123GXL (ARM Cortex-M4)
A bare-metal universal IR remote that records and replays signals from any consumer remote via a UART command shell — every driver written at the register level, with no vendor HAL.
- C
- ARM Cortex-M4
- TI Code Composer Studio
- Carrier
- 38 kHz
- Timestamp
- 32-bit
- Resolution
- µs
- Vendor HAL
- None
- 01
Wrote all drivers — clock, UART0, timers, NVIC — directly against the datasheet with no vendor HAL.
- 02
Chose raw mark/space timing capture over protocol decoding, making the system remote-agnostic.
- 03
Generated the 38 kHz carrier with Timer0B PWM, gated at runtime by switching a pin between GPIO and alternate function.
Remote-agnostic by design
Rather than decoding a fixed set of protocols (NEC, RC5, Sony), the system captures raw mark/space timing. That one decision removes the protocol table entirely — anything that transmits on a 38 kHz carrier can be recorded and replayed, including remotes whose encoding I'd never seen.
Microsecond capture

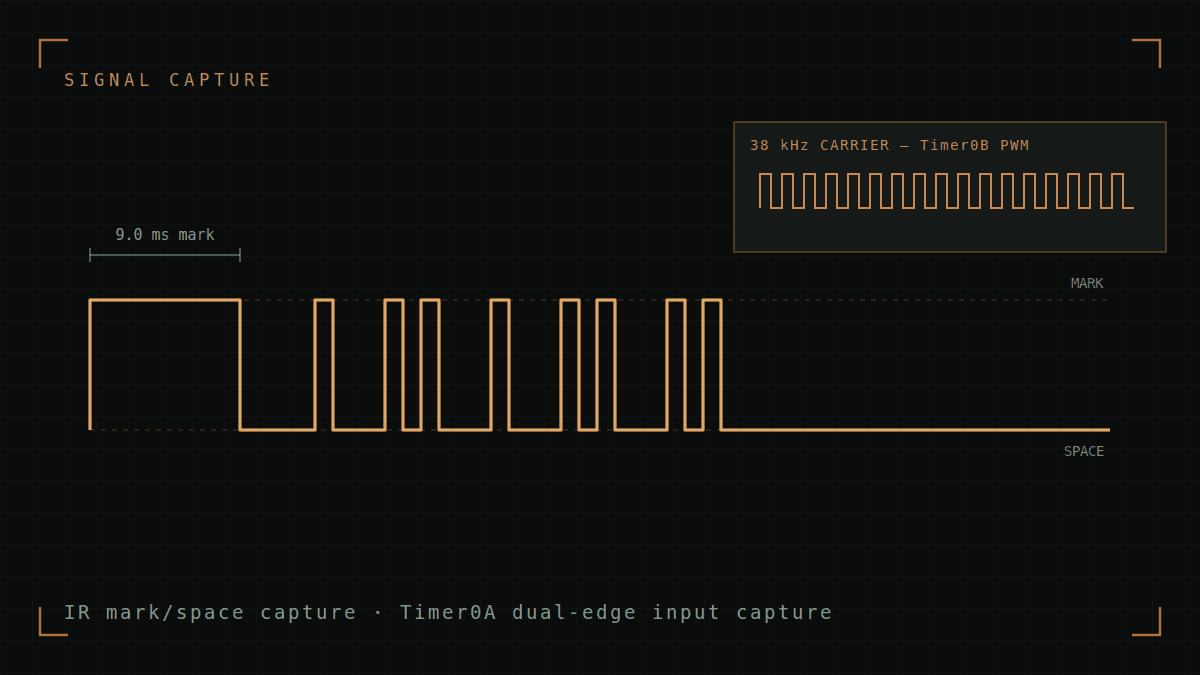

Edges are captured with dual-edge input capture on Timer0A, timestamped against a free-running 32-bit counter. The free-running counter is what buys microsecond resolution without drift across a long frame — each edge is an absolute timestamp, not an accumulated delta, so error doesn't compound down the burst.
Carrier generation and gating
Timer0B drives a 38 kHz PWM carrier. Gating it at runtime is done by reconfiguring the pin between GPIO and alternate-function mode — the timer keeps running while the pin decides whether the world hears it. SysTick-based gap detection marks IR frame boundaries so a burst is correctly segmented into a replayable frame.
Analog front end
The IR emitter is driven through a 2N3904 transistor, since the GPIO pin alone can't source the LED current needed for usable range. Reception uses a demodulating IR receiver, which strips the carrier and hands back clean logic-level mark/space edges.
